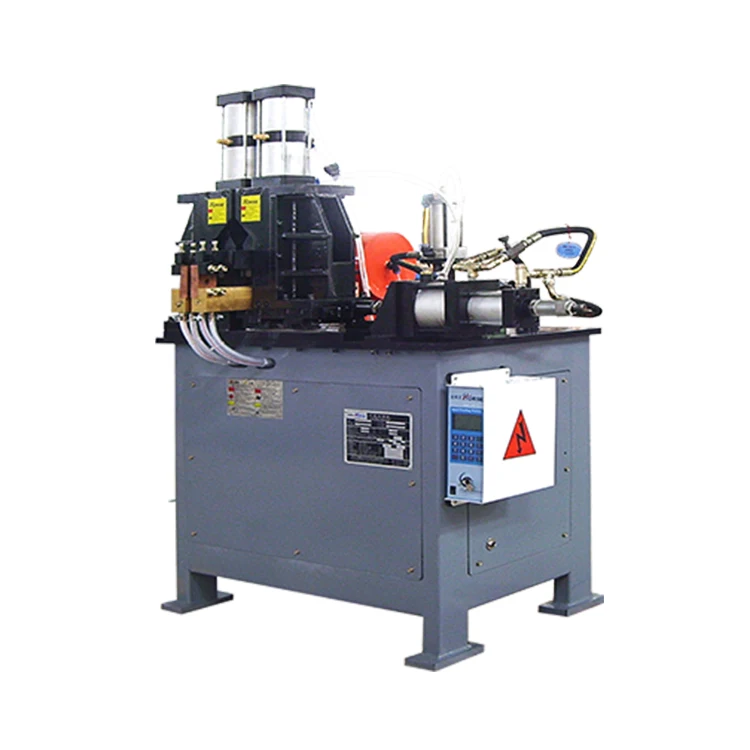

Semi Automatic Flash Butt Welding Water Cooling Machine Butt Welder

Name: Semi Automatic Flash Butt Welding Water Cooling Machine Butt Welder
Brand: TRINTFAR
Price: 2500 USD

Quality Semi Automatic Flash Butt Welding Water Cooling Machine Butt Welder for sale

MOQ : 1

Delivery Time : Within 90 days of the final payment

Condition : New

Certification : ISO CE CCC

After-sales Service Provided : Video technical support

Place of Origin : China

Model Number : UN-25

Input voltage : 380V

Payment Terms : L/C, D/A, D/P, T/T

Name : High Quality Steel Wire Butt Welding Machine Made In China

Price : USD 2500-4500 set

Usage : Butt Welding

Supply Ability : 500 per year

Reled capacity : 50KVA-200KVA

Brand Name : TRINTFAR

Packaging Details : wooden box

Contact Now

Semi-Automatic Flash Butt Welding Water Cooling Machine Butt Welder

1, Machine body of thick steel sheet, not easy to deformation.

2, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.

3, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.

4, Quality is stable, failure rate is low, therefore machine life is longer.

Advantages:

Semi Automatic Flash Butt Welding Water Cooling Machine Butt Welder

Specification

Item Model	UN-25	UN-35	UN-50	UN-75	UN-100	UN-150	UN-200
Rated capacity KVA	25	35	50	75	100	150	200
Rated Primary voltage V	380	380	380	380	380	380	380
Rated frequency Hz	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Maximum short current A	11000	13000	15000	22000	28000	32000	35000
Maximum clamping rate N	3900	3900	3900	6100	6100	8000	8000
Maximum forging force N	1500	1500	1500	2500	2500	3000	3000
Rated duty cycle %	50	50	50	50	50	50	50

Semi Automatic Flash Butt Welding Water Cooling Machine Butt Welder

Semi Automatic Flash Butt Welding Water Cooling Machine Butt Welder Images
